About This Product
Cal home Aluminum Sliding Bypass Track and Hardware Set is a heavy-duty by-passing hardware series. It works great for doors between rooms, closet doors, cabinets, and storage walls. The track is made of heavy-walled aluminum and guarantees that your door will not jump. This design is easy to install.
Features

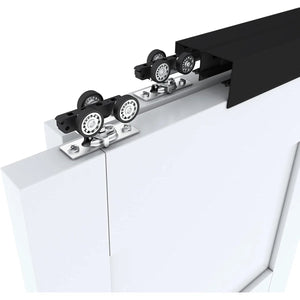

Tri-wheel-designed hangers help the weight of the carrier door to be evenly distributed on each wheel. This allows the hangers to operate more smoothly and quietly
Designed to work for two bypassing doors. Fit door thick 1-3/8 in. or 1-3/4 in; wide up to 36 in

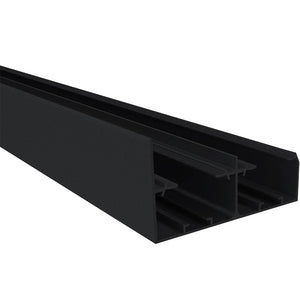

The track is 72 inches long and can be cut according to your need. Track finish: black
The track is built as commercial grade to fit door weights up to 150 lbs
Durability test 100000 cycles passed to ensure long-term use

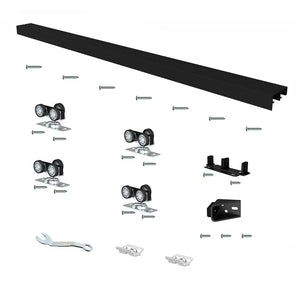

The set includes 1x bypass aluminum track, 4x tri-wheel hangers, 1x adjustable door guide, and 1x door stopper
Door included: No
There is no something to prevent the bottom of the doors.
Show Less
Specifications
Other Dimensions
Diameter of Wheel/Caster
1.5''
Maximum Compatible Door Thickness
1.75''
Overall Product Weight
8 lb.
Minimum Compatible Door Thickness
1.38''
Track Length - End to End
72'' L
Track Height
1.5'' H
The track is 4" wide
Details
Product Type
Double Door Barn Door Hardware Kit
Number of Rollers Included
4
Type of Guide Included
Floor, Roller
Track Type
Double Bypass
Material
Aluminum
Country of Origin
China
Durability
No Additional Durability
Weight Capacity
150 lb.
Finish
Black
Assembly
Installation Required
Yes
Additional Parts Required (Not Included)
No
